Summarize:

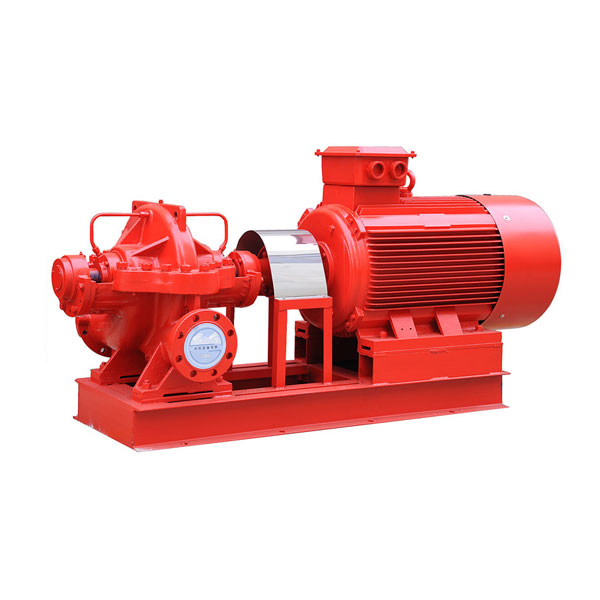

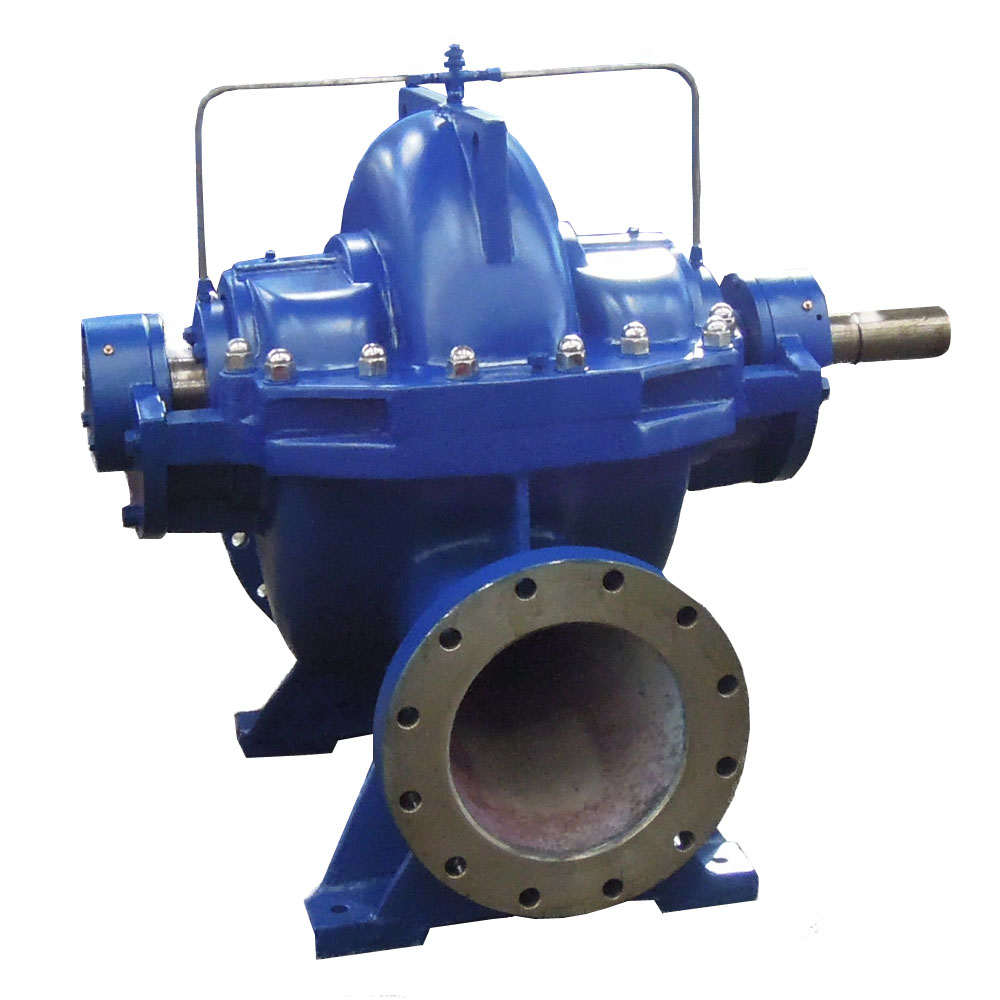

1.Zhejiang Jushi Pump Co.,Ltd manufacture split case pump for agriculture use is a single stage doublesuction split casing pump with high capacity and pressure,which can transmit clean water or similar liquids(Oil).
2. S,XS single stagedouble suction split case are widely used in delivering liquids to the waterplant,circulation water system of airconditioner,pipe net syetem ofsupplying heated water,construction,drainage pumping station,powerstation,industrial water supply system,ship industry,mine and etc.
Productdetails:
Pump Type | Split Casing Pump |
Casing Material | HT200 |
Impeller | SS304,SS316,Copper,HT200 |
Pump Sealing | Packing seal,Mechanical seal |
Capacity Range | 126m3/h~8520m3/h |
Head Range | 8m~140m |
Inlet/Outlet diameter | 6"(150mm)~32"(800mm) |
Rotary Speed | 1450rmp/2950rpm/585rpm/730rpm/970rpm |
NPSH(r) | 2.5m~7.5m |
N.weight | 165kgs~2550kgs |
Pump Parts | Casing,Pump cover,Impeller,Shaft, Double suction sealing ring Shaft sleeve,Bearing etc |
Certificate | ISO9001:2008,CE,TUV |
Model | CapacityQ | HeadH | Speed n | Power(KW) | effeciencyη | NPSH r (m) |
( m3/h) | (m) | (r/min) | aix power | motor power | (%) |
100S90 | 80 | 90 | 2950 | 30.1 | 37 | 65 | 2.5 |
100S90A | 72 | 75 | 23 | 30 | 64 | 2.5 |
150S100 | 160 | 100 | 59.8 | 75 | 73 | 3.5 |
150S78 | 160 | 78 | 45 | 55 | 73.5 | 3.5 |
150S78A | 144 | 62 | 33.8 | 45 | 72 | 3.5 |
150S50 | 160 | 50 | 27.3 | 37 | 80 | 3.9 |
150S50A | 144 | 40 | 20.9 | 30 | 75 | 3.9 |
150S50B | 133 | 36 | 18.6 | 22 | 70 | 3.9 |
200S95 | 280 | 95 | 91.7 | 110 | 79.2 | 5.3 |
200S95A | 270 | 75 | 73.5 | 90 | 75 | 5.3 |
200S63 | 280 | 63 | 58.3 | 75 | 82.7 | 5.8 |
200S63A | 270 | 46 | 45.1 | 55 | 75 | 5.8 |
200S42 | 280 | 42 | 38.1 | 45 | 84.2 | 6 |
200S42A | 270 | 36 | 33.1 | 37 | 80 | 6 |
250S65 | 485 | 65 | 1450 | 109 | 132 | 78.6 | 3 |
250S65A | 468 | 54 | 89.4 | 110 | 77 | 3 |
250S39 | 485 | 39 | 61.5 | 75 | 83.6 | 3.2 |
250S39A | 468 | 30.5 | 49.3 | 55 | 79 | 3.2 |
250S24 | 485 | 24 | 36.9 | 45 | 85.8 | 3.5 |
250S24A | 414 | 20.3 | 27.6 | 37 | 83 | 3.5 |
250S14 | 485 | 14 | 21.5 | 30 | 85.8 | 3.8 |
250S14A | 432 | 11 | 15.8 | 18.5 | 82 | 3.8 |
300S110 | 790 | 110 | 295.7 | 440 | 80 | 4 |
300S90 | 790 | 90 | 242.8 | 315 | 79.6 | 4 |
300S90A | 756 | 78 | 217 | 280 | 74 | 4 |
300S90B | 720 | 67 | 180 | 220 | 73 | 4 |
300S58 | 790 | 58 | 149.9 | 180 | 84.2 | 4.4 |
300S58A | 720 | 49 | 118.6 | 160 | 81 | 4.4 |
300S58B | 684 | 43 | 100 | 132 | 80 | 4.4 |
300S32 | 790 | 32 | 79.2 | 110 | 86.8 | 4.6 |
300S32A | 720 | 26 | 60.7 | 75 | 84 | 4.6 |
300S19 | 790 | 19 | 47 | 55 | 86.8 | 5.2 |
300S19A | 720 | 16 | 39.2 | 45 | 80 | 5.2 |
300S12 | 790 | 12 | 30.4 | 37 | 84.8 | 5.5 |
300S12A | 684 | 10 | 3.9 | 30 | 78 | 5.5 |
350S125 | 1260 | 125 | 534 | 710 | 80.5 | 5.4 |
350S125A | 1181 | 112 | 462 | 630 | 78 | 5.4 |
350S125B | 1098 | 96 | 373 | 500 | 77 | 5.4 |
350S75 | 1260 | 75 | 303 | 355 | 85.2 | 5.8 |
350S75A | 1170 | 65 | 247 | 280 | 84 | 5.8 |
350S75B | 1080 | 55 | 197 | 220 | 82 | 5.8 |
350S44 | 1260 | 44 | 173 | 220 | 87.5 | 6.3 |
350S44A | 1116 | 36 | 131 | 160 | 84 | 6.3 |
350S26 | 1260 | 26 | 102 | 132 | 87.5 | 6.7 |
350S26A | 1116 | 21.5 | 78.8 | 90 | 83 | 6.7 |
350S16 | 1260 | 16 | 64.5 | 75 | 85.3 | 7.1 |
350S16A | 1044 | 13.4 | 48.8 | 55 | 48 | 7.1 |
500S98 | 2020 | 95 | 970 | 678 | 800 | 79.5 | 4 |
500S98A | 1872 | 83 | 540 | 630 | 78.5 | 4 |
500S98B | 1746 | 74 | 452 | 560 | 78 | 4 |
500S59 | 2020 | 59 | 391 | 450 | 83 | 4.5 |
500S59A | 1872 | 49 | 333 | 400 | 75 | 4.5 |
500S59B | 1746 | 40 | 257 | 315 | 74 | 4.5 |
500S35 | 2020 | 35 | 219 | 280 | 88 | 4.8 |
500S35A | 1746 | 27 | 151 | 220 | 85 | 4.8 |
500S22 | 2020 | 22 | 144.1 | 185 | 84 | 5.2 |
500S22A | 1746 | 17 | 101 | 132 | 80 | 5.2 |
500S13 | 2020 | 13 | 86.2 | 110 | 83 | 5.7 |
600S75 | 3170 | 75 | 727 | 800 | 89 | 7.5 |
600S75A | 2880 | 65 | 580 | 630 | 88 | 7.5 |
600S47 | 3170 | 47 | 465 | 560 | 88 | 7.5 |
600S32 | 3170 | 32 | 310 | 400 | 89 | 7.5 |
600S32A | 2880 | 27 | 238 | 280 | 89 | 7.5 |
600S22 | 3170 | 22 | 223 | 280 | 85 | 7.5 |
600S22A | 2880 | 18.2 | 168.5 | 200 | 84.5 | 7.5 |
