Organic acids, organic compounds, alkali, neutral solution and various gases.

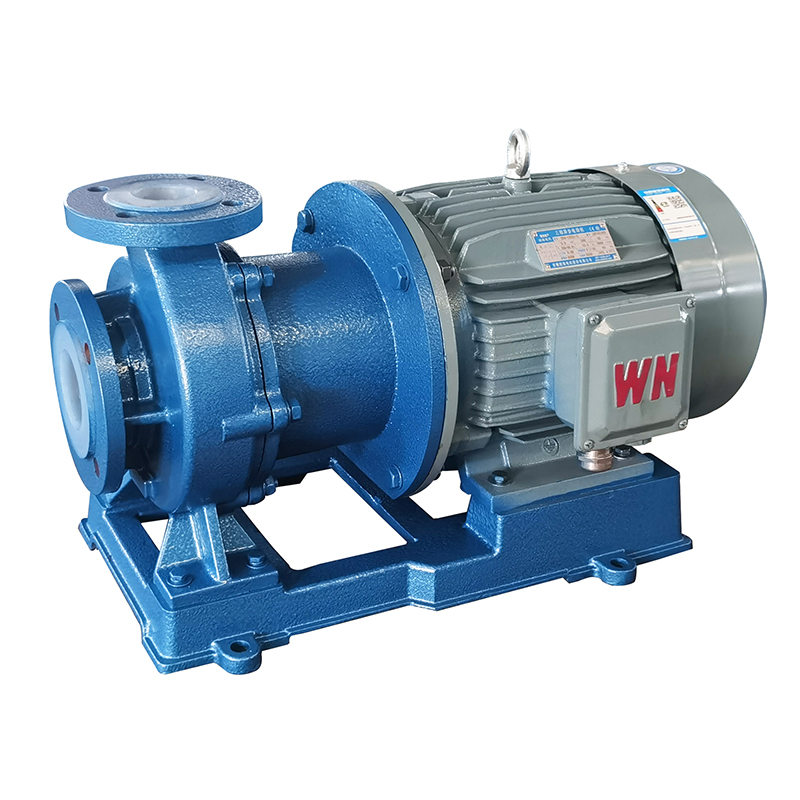

Summary: PTFE Fluorine Lined Chemical Caustic Soda Transfer Magnetic Drive Pump is the main product of our company, is made of fluorine plastic lining, can withstand a variety of strong acids and bases, is an ideal solution for industrial chemical industry. The products are made according to CE,ISO9001 standard and can be customized to ANSI flange standard.
Product Features:
Model Type
TMF (fluorine plastic lined magnetic drive pump)
Flow range
3.6-200m3/hr(60-3333l/min)
Head range
20-50m(65-262 feet)
Motor power
1.1-55kw (1.5-75hp)
Aperture
32*20mm-125*100mm
EFF
18%-60%
NPSHr
3-5.5m(10-18feet)
Speed
2900r/min,1450r/min, 3600r/min or as customer required
Voltage
220V-600V, 50Hz-60Hz or as customer required
Connection
Flange butt joint(ASME-ANSI-JIS-GB) or as customer required
Medium density
1.8 or less
Temperature range
-20 °C to +160 °C (-68 °F to 320°F)
Brand name
TEFLOW PUMP
Introduction
TMF series of pumps uses a variety of new materials, can be different according to the transport medium to replace a variety of suitable materials. Can be customized high temperature type, lye type, granular and so on.
Material
TMF series of pumps are made of all silicon carbide grinding materials ; The pump shell is made of HT200/F46; The impeller is made of F46/HdFeB, and the ring,spindle and shaft sleeve is made of SIC; The external magnetism is made of HT200/NdFeB.
Medium
Sulfuric acid pump, hydrochloric acid pump, hydrofluoric acid pump, nitric acid pump, strong alkali, strong oxidant, organic solvent and other strong corrosive media without damage.
