Type	Centrifugal Pump	Flow	7-2650m
Head	8-36m	Power	0.55-355Kw
Material	Cast Iron	Brand	JUSHI
Application	municipal works, industrial buildings, hotels, hospitals, civil air defense, mines etc.

Introduction:

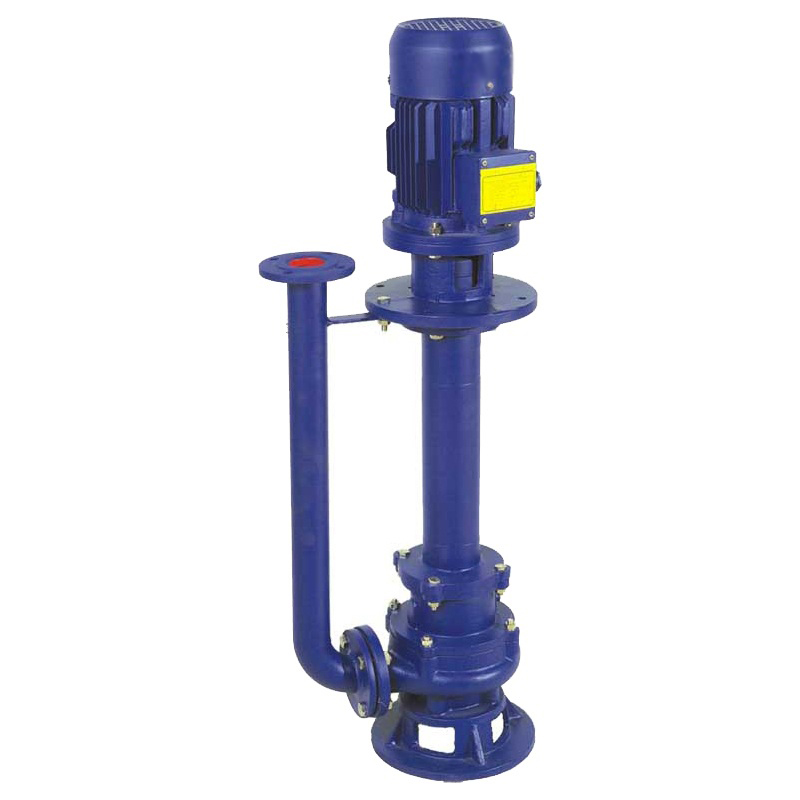

1. Zhejiang Jushi Pump Co.,Ltd manufacture vertical long tube dirty water pump centrifugalsewage submerged slurry pump is new-generation products successfully developed by Johamesby way of introducing the ad vanced technology and meet international topstandards.

2. The impeller adopts particular large channel structure, sothe drain capacity has been improved greatly.

3. To realize automation management we will equip various sewagespecial control cabinet according to the consumers’ requirements.

4. It is mainly used for municipal works, industrial buildings,hotels, hospitals, civil air defense, mines etc. To drain off the sewage, wastewater, rainwater and living water in cities containing solid grains and variouslong fabrics.

Products details:

Working Principle:	Centrifugal, QW WQ YW submerged, vertical
Main applications:	Sewage
Driver:	Electric motor
Power Specs:	380/415 V 3phase; 50hz/60hz
Max.permissible fluid temperature:	80°C(176°F)
Type of connection:	Flange
Installation position:	Vertical
Casing/Inner parts material:	Cast iron, Stainless steel/Cast iron, Stainless steel
Shaft seal type:	Mechanical seal
Maximum free passage:	50% of caliber diameter
Maximum drive rating:	315KW(420HP)
Maximum caliber:	500mm(20nch)
Maximum discharge-side pressure:	0.36MPa(3.6bar)
Maximum head:	36m(118.1ft)
Flow rate range:	7-2650m3/h(30.8-11660US.GPM)

Performance data:

Model	Outlet	Capacity	Head	Speed	Power	Efficiency
Model	(mm)	(m3 /h)	(m)	(r/min)	(KW)	(%)
25YW7-8-0.55	25	7	8	2900	0.55	45
25YW8-25-1.1	25	8	25	2900	1.1	45
32YW8-12-0.75	32	8	12	2900	0.75	48
40YW12-15-1.5	40	12	15	2900	1.5	48
50YW20-7-0.75	50	20	7	2900	0.75	62
50YW10-10-0.75	50	10	10	2900	0.75	54
50YW20-15-1.5	50	20	15	2900	1.5	51
50YW15-30-2.2	50	15	30	2900	2.2	51
50YW17-25-3	50	17	25	2900	3	53
50YW25-32-5.5	50	25	32	2900	5.5	49
65YW25-15-2.2	65	25	15	2900	2.2	52
65YW37-13-3	65	37	13	2900	3	60
65YW25-30-4	65	25	30	2900	4	58
80YW40-7-2.2	80	40	7	2900	2.2	50
80YW80-15-7.5	80	80	15	1450	7.5	45
80YW100-32-18.5	80	100	32	2900	18.5	65
80YW40-15-4	80	40	15	2900	4	57
80YW65-25-7.5	80	65	25	2900	7.5	56
100YW85-10-4	100	85	10	1450	4	62
100YW100-35-18.5	100	100	35	1450	18.5	67
100YW65-15-5.5	100	65	15	1450	5.5	59
100YW100-15-7.5	100	100	15	1450	7.5	70
100YW85-20-7.5	100	85	20	1450	7.5	71
100YW100-25-11	100	100	25	1450	11	61
150YW145-9-7.5	150	145	9	1450	7.5	63
150YW200-10-15	150	200	10	1450	15	64
150YW180-15-15	150	180	15	1450	15	67
150YW180-20-18.5	150	180	20	1450	18.5	74
150YW150-26-18.5	150	150	26	1450	18.5	72
150YW180-35-22	150	180	35	1450	22	69
150YW200-30-37	150	200	30	1450	37	65
150YW150-35-37	150	150	35	1450	37	63
200YW300-7-11	200	300	7	980	11	75
200YW250-11-15	200	250	11	1450	15	72
200YW250-15-18.5	200	250	15	1450	18.5	72
200YW400-10-22	200	400	10	1450	22	75
200YW300-15-22	200	300	15	1450	22	71
200YW400-13-30	200	400	13	1450	30	76
200YW250-22-30	200	250	22	1450	30	71
200YW300-25-37	200	300	25	1450	37	73
200YW250-35-45	200	250	35	1450	45	69
200YW400-30-55	200	400	30	1450	55	72
250YW600-9-30	250	600	9	980	30	78
250YW600-12-37	250	600	12	1450	37	76
250YW600-15-45	250	600	15	1450	45	73
250YW600-20-55	250	600	20	1450	55	73
250YW600-25-75	250	600	25	1450	75	71
300YW800-12-45	300	800	12	980	45	74
300YW480-15-45	300	480	15	1450	45	66
300YW400-20-45	300	400	20	1450	45	64
300YW600-20-55	300	600	20	1450	55	73
300YW800-20-75	300	800	20	1450	75	75
300YW950-20-90	300	950	20	1450	90	76
300YW950-24-110	300	950	24	1450	110	76
350YW1100-10-45	350	1100	10	980	45	85
350YW1180-13-75	350	1180	13	980	75	84
350YW1200-15-90	350	1200	15	980	90	84
350YW1130-18-90	350	1130	18	980	90	83
350YW1250-19.5-110	350	1250	19.5	740	110	83
350YW1500-20.6-132	350	1500	20.5	740	132	82
350YW1500-26-160	350	1500	26	740	160	83
400YW1800-9.5-75	400	1800	9.5	740	75	85
400YW1690-12-90	400	1690	12	980	90	85
400YW2000-13.5-110	400	2000	13.5	980	110	85
400YW1700-22-160	400	1700	22	740	160	83.5
400YW2000-18.4-160	400	2000	18.4	980	160	85
400YW1950-23-185	400	1950	23	980	185	85
400YW1980-26-220	400	1980	26	980	220	83
400YW1800-32-250	400	1800	32	740	250	82
450YW2300-9.5-90	450	2300	9.5	740	90	85
450YW2250-11-110	450	2250	11	740	110	85
450YW2260-14-132	450	2260	14	740	132	85
450YW2280-20-185	450	2280	20	740	185	83
450YW2300-25-250	450	2300	20	740	250	83
450YW2300-29-280	450	2300	25	740	280	83
450YW2100-36-315	450	2100	29	740	315	83
500YW2490-10-110	500	2490	36	740	110	85
500YW2500-16-160	500	2500	10	740	160	85
500YW2490-18.5-185	500	2490	18.5	740	185	85
500YW2500-12-132	500	2500	12	740	132	85
500YW2400-22-220	500	2400	22	740	220	85
500YW2650-24-250	500	2650	24	740	250	85
500YW2400-28-280	500	2400	28	740	280	85
