Product introduction:

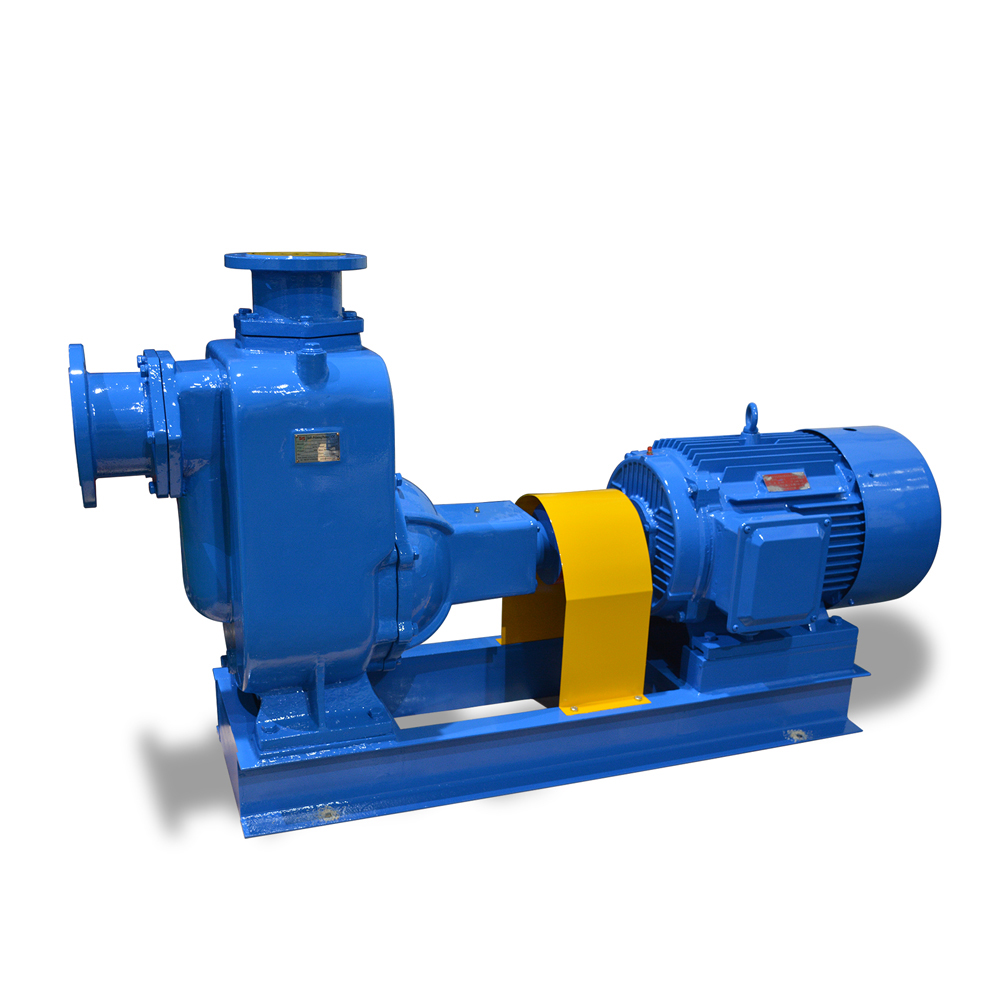

1. Zhejiang Jushi Pump Co.,Ltd manufacture horizontal electric centrifugalwaste water pump industrial sewage self priming pump is special designedfor sewage and waste water transfer and treatment.
2. The sewage pump is with self-primingstructure, at the bottom of inlet, there’s a hole for unloading of solids leftin pump.
3. It also could be equipped with dieselengine for wild application.
4. The unique structure of open impellermakes sure the free pass of solids in sewage with max size of 60% of outlet DNand fiber 150% of impeller diameter.
5. The self priming pump is widelyapplicable for the lines of urban diacharge projects, light industry,papermaking, textile, foodstuff, chemicals, electric power, petroleum, mines,aquiculture and so on.
Products details:
Working Principle: | Centrifugal, Self-priming |
Main applications: | Sewage with soilds, dirty water |
Driver: | Electric motor, diesel engine |
Power Specs: | 220/380/400/415 V 3phase; 50hz/60hz |
Max.permissible fluid temperature: | 80°C(176°F) |
Type of connection: | Flange |
Installation position: | Horizontal |
Casing parts material: | Cast iron, Stainless steel |
Shaft seal type: | Mechanical seal |
Maximum grain diameter: | 15-170mm |
Maximum fiber length: | 120-2000mm |
Maximum viscosity: | 1×104C.S.T |
Maximum drive rating: | 55KW(75HP) |
Maximum caliber: | 300mm(12nch) |
Maximum discharge-side pressure: | 0.8MPa(8bar) |
Maximum head: | 80m(262.4ft) |
Flow rate range: | 8-800m3/h(35.2-3520US.GPM) |
Performance data:
Model | Capacity | Power | Head | Speed | Suction | Max grain diameter | Max fiber length | Pressure |
(m3/h) | (KW) | (m) | (r/min) | (m) | (mm) | (mm) | (MPa) |
25ZW8-15 | 8 | 1.5 | 15 | 2900 | 5.5 | 15 | 120 | 0.1-0.18 |
32ZW10-20 | 10 | 2.2 | 20 | 2900 | 5.5 | 20 | 150 | 0.15-0.25 |
40ZW20-15 | 20 | 2.2 | 15 | 2900 | 5.5 | 25 | 230 | 0.1-0.18 |
40ZW15-30 | 15 | 3 | 30 | 2900 | 5.5 | 25 | 230 | 0.24-0.32 |
50ZW10-20 | 10 | 2.2 | 20 | 2900 | 5.5 | 30 | 250 | 0.15-0.25 |
50ZW20-15 | 20 | 2.2 | 15 | 2900 | 5.5 | 30 | 250 | 0.1-0.18 |
50ZW15-30 | 15 | 3 | 30 | 2900 | 5.5 | 30 | 250 | 0.24-0.32 |
65ZW30-18 | 30 | 4 | 18 | 2900 | 5.5 | 40 | 380 | 0.13-0.20 |
65ZW20-30 | 20 | 5.5 | 30 | 2900 | 5.5 | 40 | 380 | 0.24-0.32 |
65ZW25-40 | 25 | 7.5 | 40 | 2900 | 5.5 | 40 | 380 | 0.32-0.42 |
80ZW40-16(2) | 40 | 4 | 16 | 2900 | 5.5 | 50 | 400 | 0.11-0.18 |
80ZW40-16(4) | 40 | 4 | 16 | 1450 | 5.5 | 50 | 400 | 0.1-0.18 |
80ZW65-25 | 65 | 7.5 | 25 | 2900 | 5.5 | 50 | 400 | 0.18-0.28 |
80ZW80-35 | 80 | 15 | 35 | 2900 | 5.5 | 50 | 400 | 0.24-0.37 |
80ZW80-45 | 80 | 22 | 45 | 2900 | 5.5 | 50 | 400 | 0.38-0.48 |
80ZW50-60 | 50 | 22 | 60 | 2900 | 5.5 | 50 | 400 | 0.55-0.65 |
100ZW100-15 | 100 | 7.5 | 15 | 1450 | 5.5 | 60 | 500 | 0.1-0.18 |
100ZW80-20 | 80 | 7.5 | 20 | 1450 | 5.5 | 60 | 500 | 0.15-0.25 |
100ZW100-20 | 100 | 11 | 20 | 1450 | 5.5 | 60 | 500 | 0.15-0.25 |
100ZW100-30 | 100 | 22 | 30 | 2900 | 5.5 | 60 | 500 | 0.24-0.32 |
100ZW80-60 | 80 | 37 | 60 | 2900 | 5.5 | 60 | 500 | 0.55-0.65 |
I00ZW80-80 | 80 | 45 | 80 | 2900 | 5.5 | 60 | 500 | 0.75-0.82 |
125ZW120-20 | 120 | 15 | 20 | 1450 | 5.5 | 80 | 750 | 0.13-0.22 |
150W200-15 | 200 | 15 | 15 | 1450 | 5.5 | 80 | 750 | 0.1-0.18 |
150ZW200-20 | 200 | 22 | 20 | 1450 | 5 | 80 | 750 | 0.15-0.25 |
150ZW200-28 | 200 | 30 | 28 | 1450 | 5 | 80 | 750 | 0.23-0.30 |
150ZW180-40 | 180 | 55 | 40 | 1450 | 5 | 80 | 750 | 0.32-0.42 |
200ZW280-14 | 280 | 22 | 14 | 1450 | 5 | 120 | 1000 | 0.1-0.17 |
200ZW300-18 | 300 | 37 | 18 | 1450 | 5 | 120 | 1000 | 0.13-0.20 |
200ZW300-25 | 300 | 45 | 25 | 1450 | 5 | 120 | 1000 | 0.18-0.28 |
200ZW280-28 | 280 | 55 | 28 | 1450 | 5 | 120 | 1000 | 0.21-0.31 |
250ZW400-22 | 400 | 55 | 22 | 1450 | 4.5 | 150 | 1600 | 0.17-0.25 |
300ZW800-14 | 800 | 55 | 14 | 1450 | 4.5 | 170 | 2000 | 0.1-0.17 |
