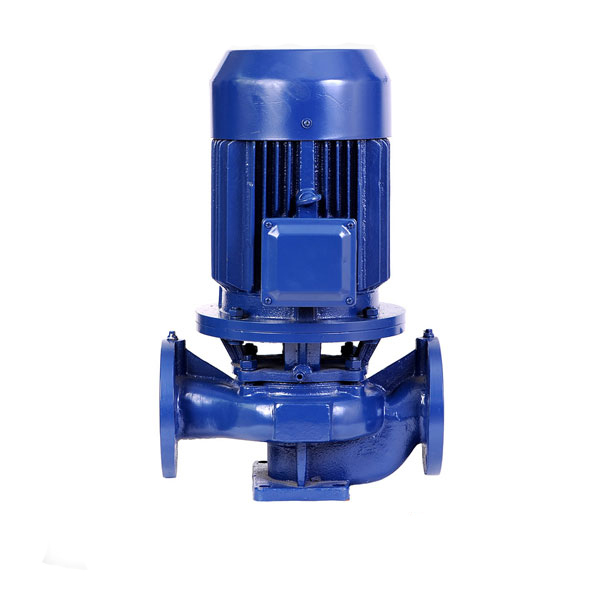

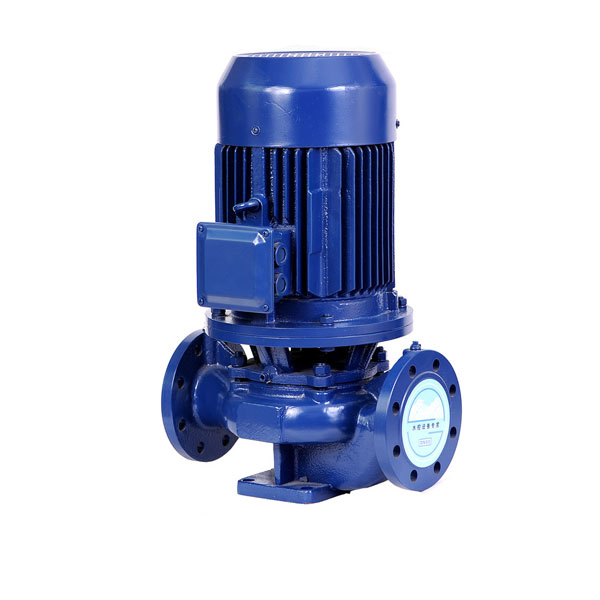

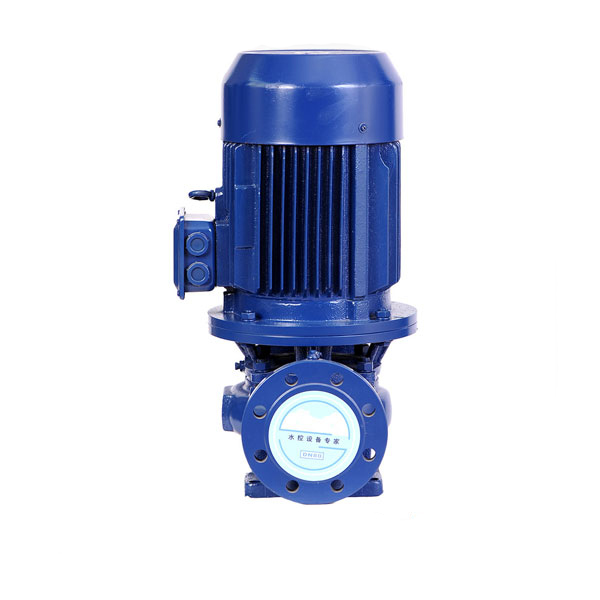

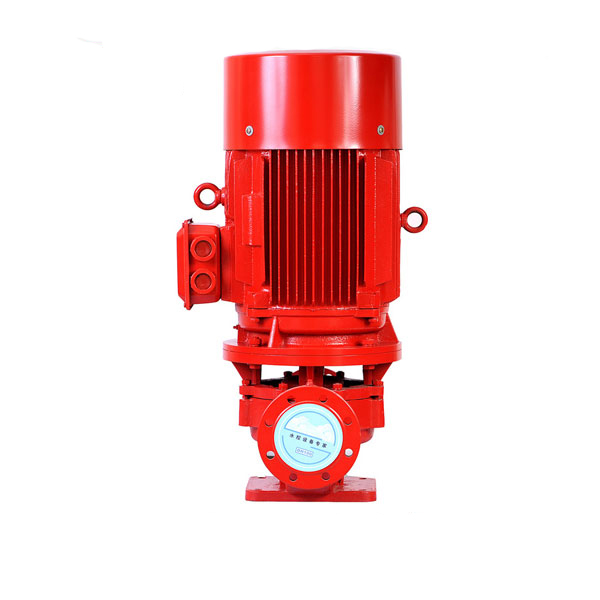

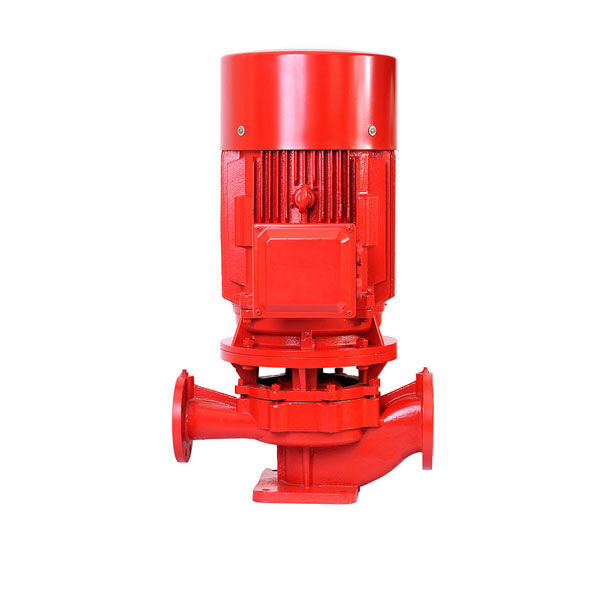

ISG cold hot water centrifugalpump vertical inline water booster pump
Introduction:
1. Zhejiang Jushi Pump Co.,Ltd manufacture ISG cold hot water centrifugal pump vertical inlinewater booster pump is a high-effective energy-saving product designed by Johames.
2. Stable running, low noise, high concentricity ofcomponents. Bearings of low noise are used for the motor, the impellers are ofbest dynamic and static balance, no vibration at running and the environmentthus being improved.
3. No leakage. The shaft is mechanically sealed with carbide alloywearable material, settling the serious leakage of the filling seal of acentrifugal pump, extending the duration and ensuring the operation place cleanand tidy.
4. Widely used in industrial and cities’ water supply anddrainage, high buildings’ booster water supply, gardens irrigation,fire-fighting booster, remote water supply, warming systems, circular boosterof cold&hot water in bath rooms as well as in competitions of equipment.
5. The pump, according to the operation condition of theworksite, may be vertically, horizontally etc. and also according to therequirements for the flow and stroke, mounted in parallel and/or in series toincrease the needed flow and stroke.
6. The flow range is 1.1-2400m3/h and thestroke range 8-160m and there are basic type, by-pass type, A B C cutting typeetc. And per the different flow medium and temperature, IRG/IRGB/ISWR hot waterpump, IHG/IHGB/ISWH chemical pump and YG/YGB/ISWB oil pump etc. Seriesproducts. of the same type and same property data have been designed andmade.
Product details:
Working Principle: | Centrifugal |
Main applications: | Water (oil, chemical, contact us) |
Driver: | Electric motor |
Power Specs: | 220V/240V380/415V 3phase; 50hz/60hz |
Max.permissible fluid temperature: | 100℃ (212°F) |
Type of connection: | Flange |
Casing: | Cast iron, Stainless steel |
Impeller: | Cast iron, Stainless steel, Bronze |
Shaft seal type: | Mechanical seal |
Maximum drive rating: | 250KW(340HP) |
Maximum caliber: | 500mm(20inch) |
Maximum discharge-side pressure: | 1.6MPa(16bar) |
Maximum head: | 160m(524.8ft) |
Flow rate range: | 1.1-2400m3/h(4.8-10560US.GPM) |
Pump type: | Water, Hot water type, oil type, chemical type |
Performance data:
Model | Capacity | Head | Power | Speed | Eff. | (NPSH)r | Weight |
(m3/h) | (L/s) | (m) | (KW) | (r/min) | (%) | (m) | (kg) |
15-80 | 1.1 | 0.3 | 8.5 | 0.18 | 2800 | 32.1 | 2.3 | 20 |
1.5 | 0.42 | 8 |
2 | 0.56 | 7 |
20-110 | 1.8 | 0.5 | 16 | 0.37 | 2800 | 32.4 | 2.3 | 25 |
2.5 | 0.69 | 15 |
3.3 | 0.91 | 13.5 |
20-125 | 1.8 | 0.5 | 21 | 0.75 | 2800 | 28.1 | 2.3 | 35 |
2.5 | 0.69 | 20 |
3.3 | 0.91 | 18.6 |
20-160 | 1.8 | 0.5 | 33 | 1.5 | 2950 | 18.8 | 2.3 | 38 |
2.5 | 0.69 | 32 |
3.3 | 0.91 | 30 |
25-110 | 2.8 | 0.78 | 16 | 0.55 | 2950 | 41.2 | 2.3 | 31 |
4 | 1.11 | 15 |
5.2 | 1.44 | 13.5 |
25-125 | 2.8 | 0.78 | 20.5 | 0.75 | 2950 | 37.5 | 2.3 | 35 |
4 | 1.11 | 20 |
5.2 | 1.44 | 18 |
25-125A | 2.5 | 0.39 | 17 | 0.75 | 2950 | 36.6 | 2.3 | 35 |
3.6 | 1 | 16 |
4.6 | 1.28 | 14.5 |
25-160 | 2.8 | 0.78 | 33 | 1.5 | 2950 | 29.9 | 2.3 | 44 |
4 | 1.11 | 32 |
5.2 | 1.44 | 30 |
25-160A | 2.6 | 0.72 | 29 | 1.1 | 2950 | 29 | 2.3 | 40 |
3.7 | 1.03 | 28 |
4.9 | 1.36 | 26 |
32-100 | 3.5 | 0.97 | 14.5 | 0.55 | 2950 | 45.9 | 2.3 | 35 |
4.5 | 1.24 | 12.5 |
5.3 | 1.47 | 11 |
32-125 | 3.5 | 0.97 | 22 | 1.1 | 2950 | 42.2 | 2.3 | 38 |
5 | 1.39 | 20 |
6.5 | 1.8 | 18 |
32-125A | 3.1 | 0.86 | 20 | 0.75 | 2950 | 41.2 | 2.3 | 37 |
4.5 | 1.25 | 16 |
5.8 | 1.61 | 10 |
32-160 | 3.5 | 0.97 | 34 | 1.5 | 2950 | 32.8 | 2.3 | 49 |
4.5 | 1.25 | 32 |
6 | 1.67 | 26 |
32-160A | 3.5 | 0.97 | 26.5 | 1.1 | 2950 | 31.8 | 2.3 | 43 |
4.5 | 1.25 | 25 |
6 | 1.67 | 19 |
32-200 | 3.5 | 0.97 | 53 | 3 | 2950 | 23.8 | 2.3 | 68 |
4.5 | 1.25 | 50 |
5.5 | 1.53 | 45 |
32-200A | 3 | 1.08 | 43 | 2.2 | 2950 | 22.9 | 2.3 | 58 |
4 | 1.11 | 40 |
5 | 1.17 | 37 |
… … |
400-300 | 820 | 228 | 23 | 90 | 1480 | 78.2 | 6 | 1450 |
1080 | 300 | 20 |
1300 | 361 | 16 |
400-315 | 820 | 228 | 36.5 | 132 | 1480 | 81.1 | 6 | 1740 |
1080 | 300 | 32 |
1300 | 361 | 27 |
400-450 | 1500 | 416.7 | 23 | 160 | 980 | 80.6 | 6.5 | 2420 |
2000 | 555.6 | 20 |
2400 | 666.7 | 15 |
400-450A | 1400 | 388.9 | 20 | 132 | 980 | 79.3 | 6.5 | 1940 |
1860 | 516.7 | 17 |
2250 | 625 | 14 |
400-500 | 1500 | 416.7 | 34 | 250 | 980 | 82.8 | 6.5 | 2980 |
2000 | 555.6 | 32 |
2400 | 666.7 | 27 |
400-500A | 1400 | 388.9 | 30 | 200 | 980 | 81.9 | 6.5 | 2840 |
1860 | 516.7 | 28 |
2240 | 625 | 24 |
400-500B | 1300 | 361.1 | 26 | 160 | 980 | 80.9 | 6.5 | 2710 |
1750 | 486.4 | 24 |
2100 | 583.3 | 21 |
500-300 | 1000 | 277.8 | 23 | 110 | 1480 | 81.7 | 6 | 1800 |
1200 | 333 | 20 |
1450 | 403 | 16 |
500-315 | 1000 | 277.8 | 34.5 | 160 | 1480 | 80.9 | 6 | 2070 |
1200 | 333 | 32 |
1450 | 403 | 27 |
Parameter table above is only a part ofwhole. For more, please contact us directly.
