Product introduction:

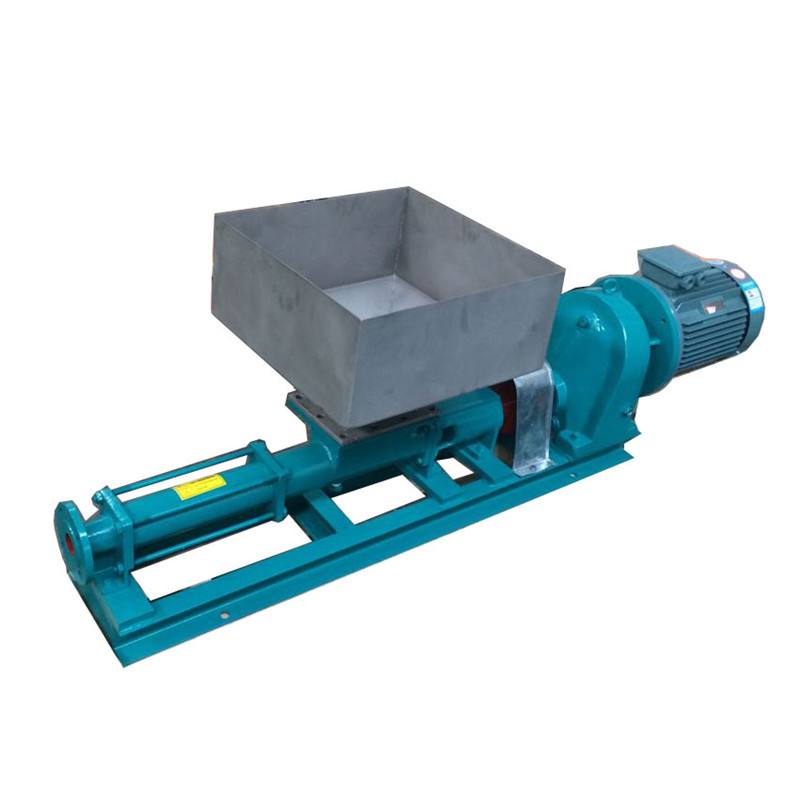

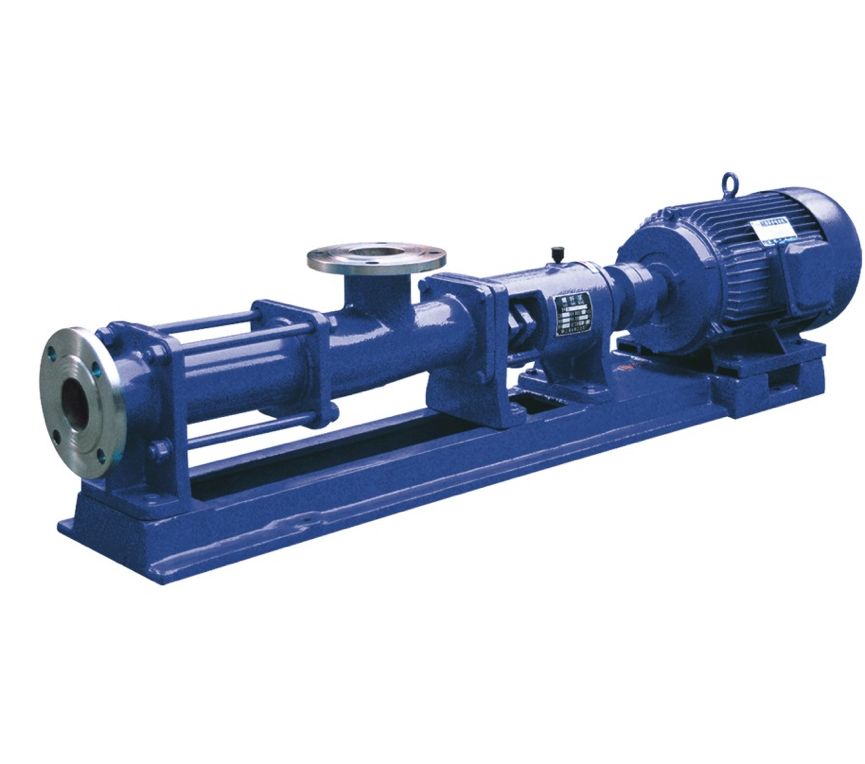

1. Zhejiang Jushi Pump Co.,Ltd manufacture horizontal single screw pumpstainless steel industrial sludge pump is compact, small, easy to maintain,well-adapted to medium, stable flow, also with small pressure fluctuation andstrong self-priming ability.
2. The single screw pump has metal linedwith rubber stator, which is made of various elastic material, such as NBRrubber, fluoro rubber.
3. The screw pump couldtransfer high viscosity fluid and medium with hard suspended solid/fiber aswell, such as slurry, dredge, sludge, slush, mud, etc.
4. The sludge pump may beequipped with gear box motor, electric magnetic speed adjustable motor, CVTmotor, frequency inverter motor, etc.
5. Widely used in petroleum industry,medicine & daily use chemistary, food industry, construction industry,printing and papermaking, etc.
Product details:
Working Principle: | Single Screw, Progressive Cavity |
Main applications: | Sludge, Chemical |
Driver: | Electric motor |
Power Specs: | 220/380/415V 3phase; 110/220/240V 1phase;50hz/60hz |
Max.permissible fluid temperature: | 120°C(248°F) |
Type of connection: | Flange |
Installation position: | Horizontal |
Casing parts material: | Cast iron, Stainless Steel |
Shaft seal type: | Mechanical seal, packing seal |
Free passage: | 6mm |
Maximum viscosity: | 1X106C.S.T |
Maximum drive rating: | 90KW(120HP) |
Maximum caliber: | 250mm(10inch) |
Maximum discharge-side pressure: | 1.2MPa(12bar) |
Flow rate range: | 0.8-150m3/h(3.5-660US.GPM) |
Performancedata:
Model | Capacity | Pressure | Speed | Motor power | Head | (NPSH)r | Inlet | Outlet | Max grain diameter | Max fiber length |
(m3/h) | (MPa) | (r/min) | (KW) | (m) | (m) | (mm) | (mm) | (mm) | (mm) |
G20-1 | 0.8 | 0.6 | 960 | 0.75 | 60 | 4 | 25 | 25 | 1.5 | 25 |
G20-2 | 1.2 | 1.5 | 120 |
G25-1 | 2 | 0.6 | 960 | 1.5 | 60 | 40 | 32 | 2 | 30 |
G25-2 | 1.2 | 2.2 | 120 |
G30-1 | 5 | 0.6 | 960 | 2.2 | 60 | 50 | 40 | 2.5 | 35 |
G30-2 | 1.2 | 3 | 120 |
G35-1 | 8 | 0.6 | 960 | 3 | 60 | 65 | 50 | 3 | 40 |
G35-2 | 1.2 | 4 | 120 |
G40-1 | 12 | 0.6 | 960 | 4 | 60 | 80 | 65 | 3.8 | 45 |
G40-2 | 1.2 | 5.5 | 120 |
G50-1 | 20 | 0.6 | 720 | 5.5 | 60 | 4.5 | 100 | 80 | 5 | 50 |
G50-2 | 1.2 | 7.5 | 120 |
G60-1 | 30 | 0.6 | 720 | 11 | 60 | 5 | 125 | 100 | 6 | 60 |
G60-2 | 1.2 | 15 | 120 |
G70-1 | 40 | 0.6 | 720 | 11 | 60 | 150 | 125 | 8 | 70 |
G70-2 | 1.2 | 18.5 | 120 |
G85-1 | 65 | 0.6 | 630 | 15 | 60 | 150 | 150 | 10 | 80 |
G85-2 | 1.2 | 30 | 120 |
G105-1 | 100 | 0.6 | 500 | 30 | 60 | 200 | 200 | 15 | 110 |
G105-2 | 1.2 | 55 | 120 |
G135-1 | 150 | 0.6 | 400 | 45 | 60 | 250 | 250 | 20 | 150 |
G135-2 | 1.2 | 90 | 120 |
