Product introduction:

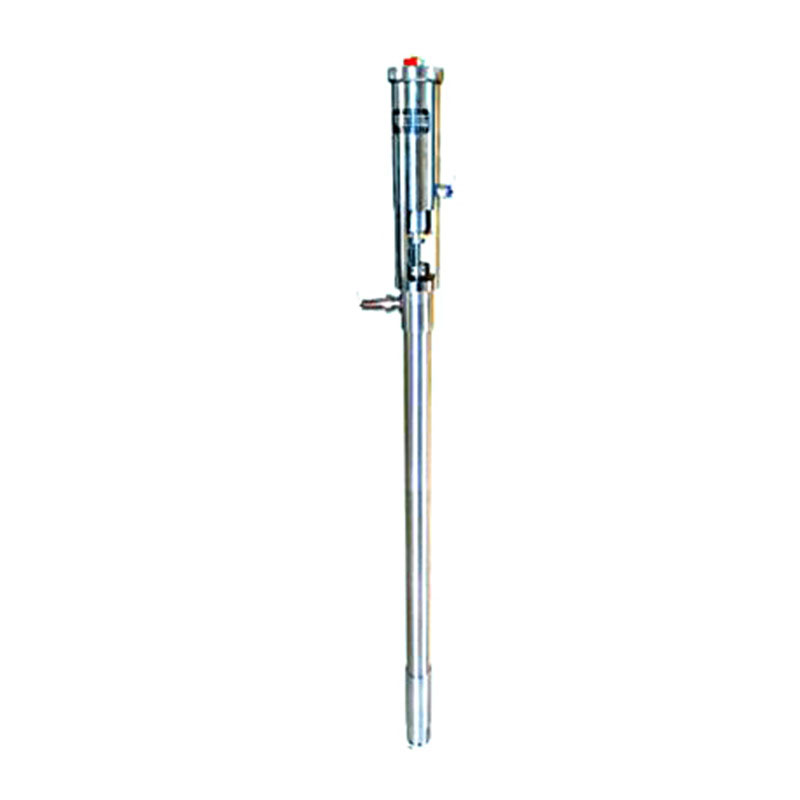

1. Zhejiang Jushi Pump Co.,Ltd manufacture FY stainless steel vertical barrel pump hair gel transfer pump pneumatic acid chemical pump is driven bycompressed air from air compressor.
2. The air plunger makes reciprocatingmotion to driven open and off of guiding plunger, so as to transfer fluid. Byadjusting the air strength, the flow rate of fluid is adjustable.
3. The barrel pump could be used totransfer chemical, high viscosity liquid, cosmetics, hair gel, slurry, oil,water, etc.
4. It is widely used in dairy chemical,leather, leather shift film, rolling leather, color-coated, printing anddyeing, pharmaceuticals, coatings, chemicals, textiles, paint, painting, andother industries.
Productdetails:
Working Principle: | Pneumatic, reciprocating, piston |
Main applications: | Slurry, chemical, oil, water |
Driver: | Pneumatic |
Max.permissible fluid temperature: | 100°C(212°F) |
Type of connection: | Quick connector |
Installation position: | Vertical |
Casing/Inner parts material: | Stainless steel / Stainless steel |
Shaft seal type: | Seal ring |
Maximum viscosity: | 1.2×105C.S.T |
Maximum drive rating: | 10kgf/cm2 |
Maximum caliber: | 50mm(2inch) |
Maximum discharge-side pressure: | 1.0MPa(10bar) |
Maximum head: | 100m(328ft) |
Flow rate range: | 0.8-5m3/h(3.5-22US.GPM) |
Performancedata:
Model | FY0.8T-1 | FY1.2T-1 | FY1.2T-2 | FY3.2T-1 | FY3.2T-2 | FY5.0T |
Inlet and outlet of outer diameter(mm) | 51/32 | 60/32 | 55/32 | 72/38 | 55/32 | 88/50 |
Capacity(m3/h) | 0.8 | 1.2 | 1.2 | 3.2 | 3.2 | 5 |
Head(m) | 0-100 | 0-100 | 0-100 | 0-100 | 0-100 | 0-100 |
Max. grain diameter(mm) | Φ0.8 | Φ1.2 | Φ1.2 | Φ3 | Φ1.2 | Φ5 |
Max. supply pressure(kgf/cm2) | 10 | 10 | 10 | 10 | 10 | 10 |
Pressure(MPa/min) | 0.3-1.0 | 0.3-1.0 | 0.3-1.0 | 0.3-1.0 | 0.3-1.0 | 0.3-1.0 |
Max. viscosity(c.s.t) | 120000 | 120000 | 120000 | 120000 | 120000 | 120000 |
Outlet diameter (Inch) | 1 1/4" | 1 1/4" | 1 1/4" | 1 1/2" | 1 1/4" | 2" |
Gas supply port diameter(Inch) | 3/8" | 3/8" | 3/8" | 3/8" | 3/8" | 3/8" |
Outlet pressure(MPa) | 0-1.0 | 0-1.0 | 0-1.0 | 0-1.0 | 0-1.0 | 0-1.0 |
Cylinder pressure ratio | 2:01 | 2:01 | 2:01 | 3:01 | 4:01 | 3:01 |
Air consumption(m3/min) | 0.3-1.0 | 0.3-1.0 | 0.3-1.0 | 0.3-1.0 | 0.3-1.0 | 0.3-1.0 |
Volume(cm3) | 143×19×18 | 152×19×18 | 147×19×18 | 166×21×18 | 158×21×18 | 172×23×21 |
Weight(kg) | 14 | 16 | 15 | 23 | 19 | 37 |
Specification(mm) | 100×1380 | 100×1450 | 100×1400 | 120×1600 | 120×1500 | 150×1680 |
