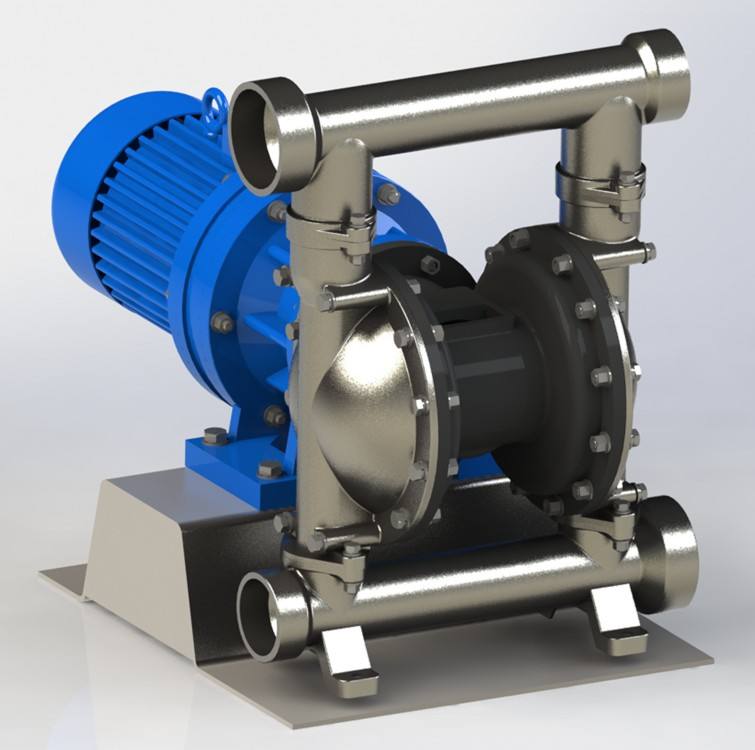

DBY Electric Diaphragm Pump
Brief Instruction:
Zhejiang Jushi Pump Co.,Ltd manufacture DBY Power Operated Diaphragm Pumpis the newest conveying machine. Diaphragm pump can exhaust all the medium kinds of liquid, which are strong viscous, volatile, corrosive, toxic, colloidsand liquid with grain. The biggest advantage is no needing water to draw, highsuction head. It can transport uneasy allowable liquid. It can be used ascentrifugal pump, screw pump.
Material:
Pump body: aluminum alloys, castiron, stainless steel.
Diaphragm: NBR, NEOPRENE,fluorine rubber or PTFE.
Usage:
1. Food: peanut butter, kraut, mashed potato, little intestines, Confiture,chocolate, hop, baking powder, syrup and gooey, etc.
2. Chemical: strong acid, alkali, corrosive, viscous, volatile, toxic, millingthings, dirty oil, paint, colophony, dye, bond and glue water, etc.
DataTable:
Model | Capacity (m3/h) | Head (m) | Suction (m) | Outlet Pressure (Kgf/cm2) | Power (kw) | Speed (r/min) | |
|
DBY-10 | 0.5 | 30 | 3 | 3 | 0.55 | 1450 |
|
DBY-15 | 75 | 3 | 0.55 |
|
DBY-25 | 3.5 | 4 | 1.5 |
|
DBY-40 | 4.5 | 4 | 2.2 |
|
DBY-50 | 6.5 | 4.5 | 3 |
|
DBY-65 | 8 | 4.5 | 3 |
|
DBY-80 | 16 | 5 | 5.5 |
|
DBY-100 | 20 | 5 | 5.5 |
|
