Product introduction:

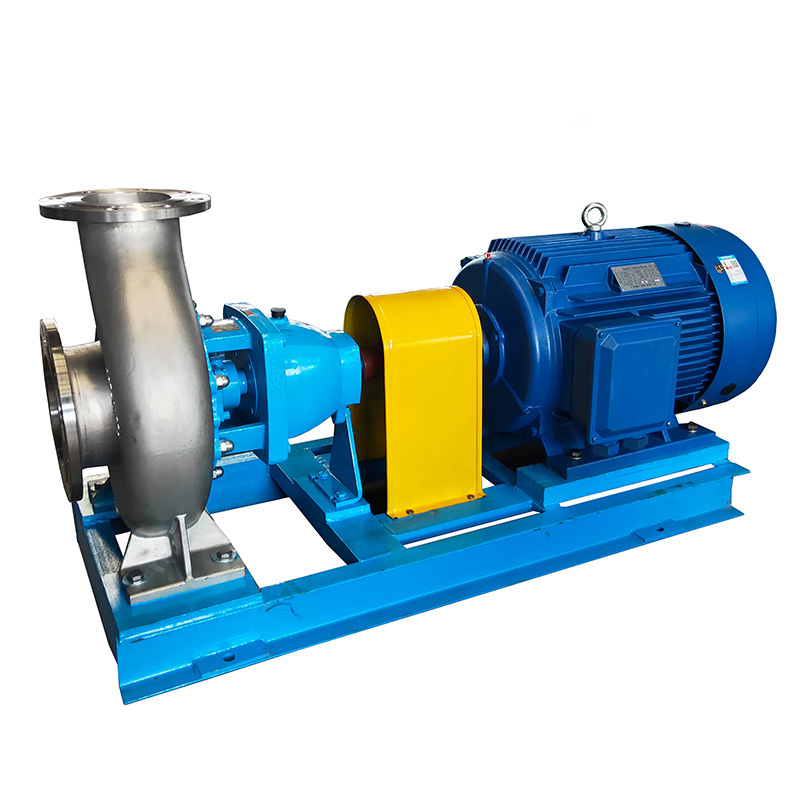

1.Zhejiang Jushi Pump Co.,Ltd manufacture IH high quality anti-corrosion acidcirculation pump end suction stainless steel centrifugal pump is excellentin performance, efficiency and easy in maintenance.
2. The centrifugal pump is made of highquality stainless steel material, which could be applied to transfercorrosive liquid (chemical) without solid and viscosity similar to water, justlike sulfuric acid, hydrochloric acid, nitric acid, even base.
3. The normal IH pump could transfermedium which is -20°C~105°C(-4°F~ 221°F), while high temperature type reaches300°C(572°F).
4. The acidcirculation pump is widely used in chemistry, petroleum,metallurgy, electricity, papermaking, food, pharmacy, environmental protection,wastewater treatment, synthetic fiber or other industries.
Productdetails:
Working Principle: | Centrifugal |
Main applications: | Chemical |
Driver: | Electric motor |
Power Specs: | 220/380/400/415V 3phase;50hz/60hz |
Max.permissible fluid temperature: | 105°C(221°F) |
Type of connection: | Flange |
Installation position: | Horizontal |
Casing parts material: | Stainless Steel |
Shaft seal type: | Mechanical seal |
Free passage: | 0mm |
Maximum drive rating: | 90KW(10HP) |
Maximum caliber: | 200mm(8inch) |
Maximum discharge-side pressure: | 1.25MPa(12.5bar) |
Maximum head: | 125m(410ft) |
Flow rate range: | 6.3-400m3/h(27.7-1760US.GPM) |
Performancedata:
Model | Speed | Capacity | Head | Efficiency | Power(KW) | NPSH | Weight |
| m3/h | L/S |
| (%) | Shaft power | Motor power |
|
|
(r/min) | (m) | IS | IH | IS | IH | (m) | (kg) |
IH50-32-125 | 2900 | 7.5 | 2.08 | 22 | 47 | 43 | 0.96 | 1.09 | 2.2 | 2 | 32.5 |
12.5 | 3.47 | 20 | 60 | 51 | 1.13 | 1.33 | 2 |
15 | 4.17 | 18.5 | 60 | 49 | 1.26 | 1.5 | 2.5 |
1450 | 3.75 | 1.04 | 5.4 | 43 | 36 | 0.13 | 0.16 | 0.55 | 2 |
6.3 | 1.74 | 5 | 54 | 45 | 0.16 | 0.19 | 2 |
7.5 | 2.08 | 4.6 | 55 | 44 | 0.17 | 0.21 | 2.5 |
IH50-32-125A | 2900 | 11.2 | 3.1 | 16 | 58 | 50 | 0.84 | 1.02 | 1.5 | 2 | 32.5 |
1450 | 5.6 | 1.56 | 4 | 52 | 44 | 0.12 | 0.15 | 0.55 |
IH50-32-160 | 2900 | 7.5 | 2.08 | 34.3 | 44 | 33 | 1.59 | 2.13 | 3 | 2 | 38.5 |
12.5 | 3.47 | 32 | 54 | 46 | 2.02 | 2.37 | 2 |
15 | 4.17 | 29.6 | 56 | 50 | 2.16 | 2.45 | 2.5 |
1450 | 3.72 | 1.04 | 8.5 | 35 | 29 | 0.25 | 0.3 | 0.55 | 2 |
6.3 | 1.74 | 8 | 48 | 40 | 0.29 | 0.34 | 2 |
7.5 | 2.08 | 7.5 | 49 | 43 | 0.31 | 0.36 | 2.5 |
IH50-32-160A | 2900 | 11.7 | 3.25 | 28 | 52 | 45 | 1.72 | 1.8 | 2.2 | 2 | 38.5 |
1450 | 5.9 | 1.64 | 7 | 46 | 39 | 0.24 | 0.27 | 0.55 |
IH50-32-160B | 2900 | 10.8 | 3 | 24 | 50 |
| 1.36 |
| 2.2 | 2 | 38.5 |
1450 | 5.4 | 1.5 | 6 | 44 |
| 0.2 |
| 0.55 |
IH50-32-200 | 2900 | 7.5 | 2.08 | 52.5 | 38 | 28 | 2.82 | 3.78 | 5.5 | 2 | 46 |
12.5 | 3.47 | 50 | 48 | 39 | 3.54 | 4.36 | 2 |
15 | 4.17 | 48 | 51 | 43 | 3.84 | 4.56 | 2.5 |
1450 | 3.7 | 1.07 | 13.1 | 33 | 23 | 0.41 | 0.57 | 0.75 | 2 |
6.3 | 1.74 | 12.5 | 42 | 33 | 0.51 | 0.65 | 2 |
7.5 | 2.08 | 12 | 44 | 36 | 0.56 | 0.68 | 2.5 |
IH50-32-200A | 2900 | 11.74 | 3.25 | 44 | 46 | 38 | 3.05 | 3.7 | 4 | 2 | 46 |
1450 | 5.9 | 1.64 | 11 | 40 | 32 | 0.44 | 0.55 | 0.75 |
IH50-32-200B | 2900 | 10.8 | 3 | 38 | 44 | 37 | 2.54 | 3.1 | 4 | 2 | 46 |
1450 | 5.4 | 1.5 | 9.5 | 38 | 31 | 0.37 | 0.47 | 0.75 |
IH50-32-250 | 2900 | 7.5 | 2.08 | 82 | 28.5 | 23 | 5.87 | 7.28 | 11 | 2 | 80 |
12.5 | 3.47 | 80 | 38 | 33 | 7.17 | 8.25 | 2 |
15 | 4.17 | 78.5 | 41 | 36.5 | 7.83 | 8.79 | 2.5 |
1450 | 3.75 | 1.04 | 20.5 | 23 | 17 | 0.91 | 1.23 | 1.5 | 2 |
6.3 | 1.74 | 20 | 32 | 27 | 1.07 | 1.27 | 2 |
7.5 | 2.08 | 19.5 | 35 | 31 | 1.14 | 1.29 | 2.5 |
IH50-32-250A | 2900 | 11.7 | 3.25 | 70 | 36 | 32 | 6.2 | 7 | 7.5 | 2 | 80 |
1450 | 5.9 | 1.64 | 17.5 | 30 | 26 | 0.94 | 1.08 | 1.5 |
… … |
IH200-150-250 | 1450 | 240 | 66.7 | 21.5 | 71 |
| 19.8 |
| 37 | 3.5 | 180 |
400 | 111.1 | 20 | 82 | 79 | 26.58 | 27.6 | 4.3 |
460 | 127.8 | 17.5 | 80 |
| 27.4 |
| 5 |
IH200-150-250A | 1450 | 374 | 87.2 | 17.5 | 80 | 78 | 22.29 | 22.9 | 30 | 4.3 |
IH200-150-250B | 1450 | 346 | 96.1 | 15 | 78 | 77 | 18.13 | 19.3 | 22 | 4.3 |
IH200-150-315 | 1450 | 240 | 66.7 | 37 | 70 | 67 | 34.6 | 34.7 | 55 | 3 | 245 |
400 | 111.1 | 32 | 82 | 79 | 42.54 | 44.1 | 3.5 |
460 | 127.8 | 28.5 | 80 | 77 | 44.6 | 47.8 | 4 |
IH200-150-315A | 1450 | 374 | 103.9 | 28 | 80 | 78 | 36.62 | 36.7 | 45 | 3.5 | 245 |
IH200-150-315B | 1450 | 346 | 96.1 | 24 | 78 | 77 | 29.02 | 30.8 | 37 | 3.5 |
IH200-150-400 | 1450 | 240 | 66.7 | 55 | 74 | 67 | 48.6 | 54.4 | 90 | 3 | 275 |
400 | 111.1 | 50 | 81 | 78 | 67.2 | 69.8 | 3.8 |
460 | 127.8 | 45 | 76 | 75 | 74.2 | 78.5 | 4.5 |
IH200-150-400A | 1450 | 374 | 103.9 | 44 | 79 | 77 | 56.76 | 58 | 75 | 3.8 | 275 |
IH200-150-400B | 1450 | 346 | 96.1 | 38 | 77 | 76 | 46.53 | 48.8 | 55 | 3.8 |
Parametertable above is only a part of whole. For more, please contact usdirectly.
