Product introduction:

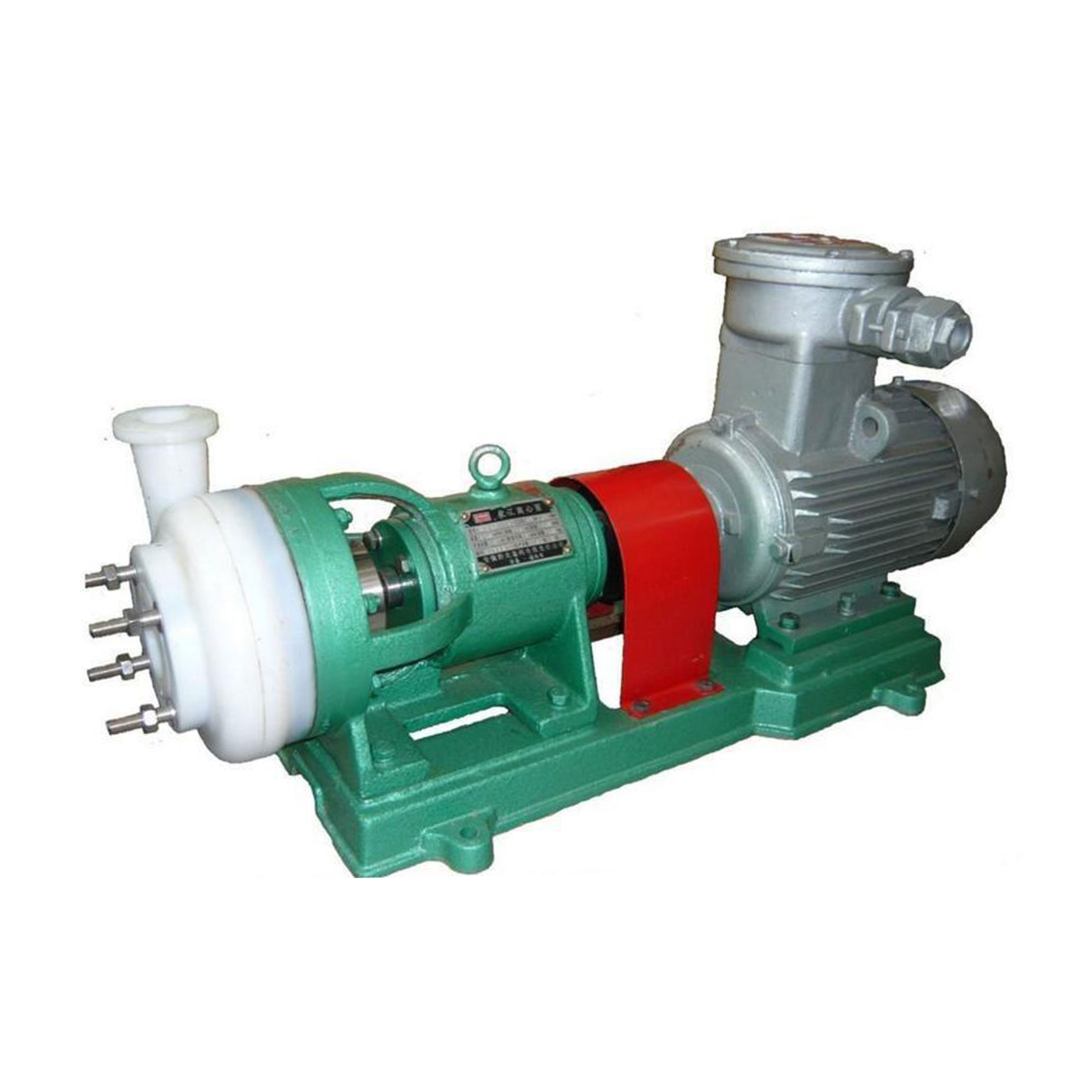

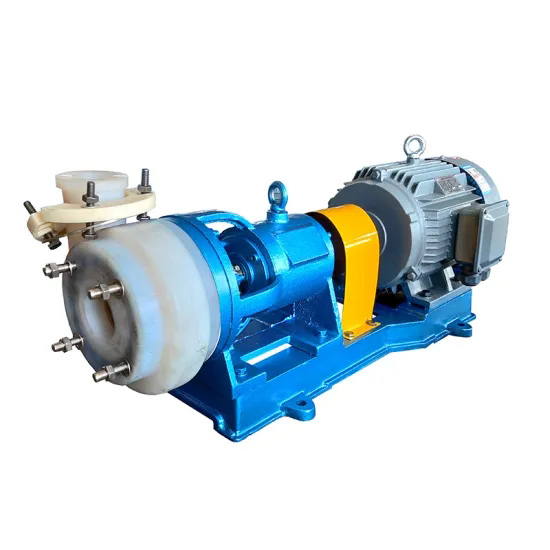

1. Zhejiang Jushi Pump Co.,Ltd manufacture FSB macromolecule material transfer corrosive liquid pumpchemical centrifugal pump is applied to convey acid, oxidant, corrosive mediumwith physical property similar to water.
2. It is with the merits of reasonable design, strongcorrosion resistance ability, high mechanical strength, non aging and easyin maintenance.
3. Wet parts are made of macromolecule, fluorine plasticor polyethylene, and pump could be designed to direct connect type or shaftcontact type.
4. The centrifugal pump is widely used in the fields of chemicalindustry, petrol, medicine, pesticide, dye, smelting, paper making, plating,etc.
Product details:
Working Principle: | Centrifugal, full plastic pump head |
Main applications: | Chemical |
Driver: | Electric motor |
Power Specs: | 220V, 240V, 380V, 400V, 415V, 440V, 50/60Hz |
Max.permissible fluid temperature: | 100°C(212°F) |
Type of connection: | Flange |
Installation position: | Horizontal |
Casing parts material: | PTFE, Teflon, UHMWPE, F46, F26 |
Shaft seal type: | Mechanical seal |
Maximum drive rating: | 75KW(100HP) |
Maximum caliber: | 200mm(8inch) |
Maximum discharge-side pressure: | 0.8MPa(8bar) |
Maximum head: | 80m(262.4ft) |
Flow rate range: | 1.5-400m3/h(6.6-1760US.GPM) |
Performance data:
Model | Capacity
(m3/h) | Head (m) | Inlet (mm) | Outlet (mm) | Power (KW) | Speed (r/min) | Efficiency (%) |
25FSB-10L | 1.5 | 10 | 25 | 20 | 2.2 | 2900 | 29 |
25FSB-18L | 3.6 | 18 | 25 | 20 | 2.2 | 2900 | 27 |
40FSB-15L | 10 | 15 | 40 | 32 | 3 | 2900 | 40 |
40FSB-20L | 10 | 20 | 40 | 32 | 3 | 2900 | 42 |
40FSB-30L | 10 | 30 | 40 | 32 | 3 | 2900 | 38 |
40FSB-40L | 10 | 40 | 40 | 32 | 4 | 2900 | 35 |
40FSB-50L | 10 | 50 | 40 | 32 | 5.5 | 2900 | 33 |
50FSB-20L | 15 | 20 | 50 | 40 | 4 | 2900 | 51 |
50FSB-25L | 15 | 25 | 50 | 40 | 4 | 2900 | 49 |
50FSB-30L | 15 | 30 | 50 | 40 | 4 | 2900 | 44.5 |
50FSB-40L | 15 | 40 | 50 | 32 | 5.5 | 2900 | 35 |
50FSB-50L | 15 | 50 | 50 | 32 | 7.5 | 2900 | 33 |
65FSB-32L | 29 | 32 | 65 | 50 | 5.5 | 2900 | 57 |
65FSB-40L | 29 | 40 | 65 | 40 | 7.5 | 2900 | 53 |
65FSB-50L | 29 | 50 | 65 | 40 | 11 | 2900 | 46 |
80FSB-20L | 50 | 20 | 80 | 65 | 7.5 | 2900 | 69 |
80FSB-30L | 50 | 30 | 80 | 65 | 7.5 | 2900 | 64 |
80FSB-34L | 50 | 34 | 80 | 65 | 11 | 2900 | 64 |
80FSB-38L | 50 | 38 | 80 | 50 | 11 | 2900 | 60 |
80FSB-50L | 50 | 50 | 80 | 50 | 15 | 2900 | 53 |
80FSB-80L | 50 | 80 | 80 | 50 | 22 | 2900 | 36 |
100FSB-32L | 100 | 32 | 100 | 80 | 18.5 | 2900 | 70 |
100FSB-40L | 100 | 40 | 100 | 80 | 22 | 2900 | 70 |
100FSB-50L | 100 | 50 | 100 | 65 | 30 | 2900 | 62 |
125FSB-32L | 200 | 32 | 125 | 80 | 30 | 2900 | 72 |
125FSB-50L | 200 | 50 | 125 | 100 | 45 | 2900 | 64 |
150FSB-32L | 200 | 32 | 150 | 100 | 30 | 1450 | 77 |
150FSB-50L | 200 | 50 | 150 | 100 | 55 | 1450 | 75 |
200FSB-32L | 400 | 32 | 200 | 150 | 55 | 1450 | 81 |
200FSB-50L | 400 | 50 | 200 | 150 | 75 | 1450 | 79 |
