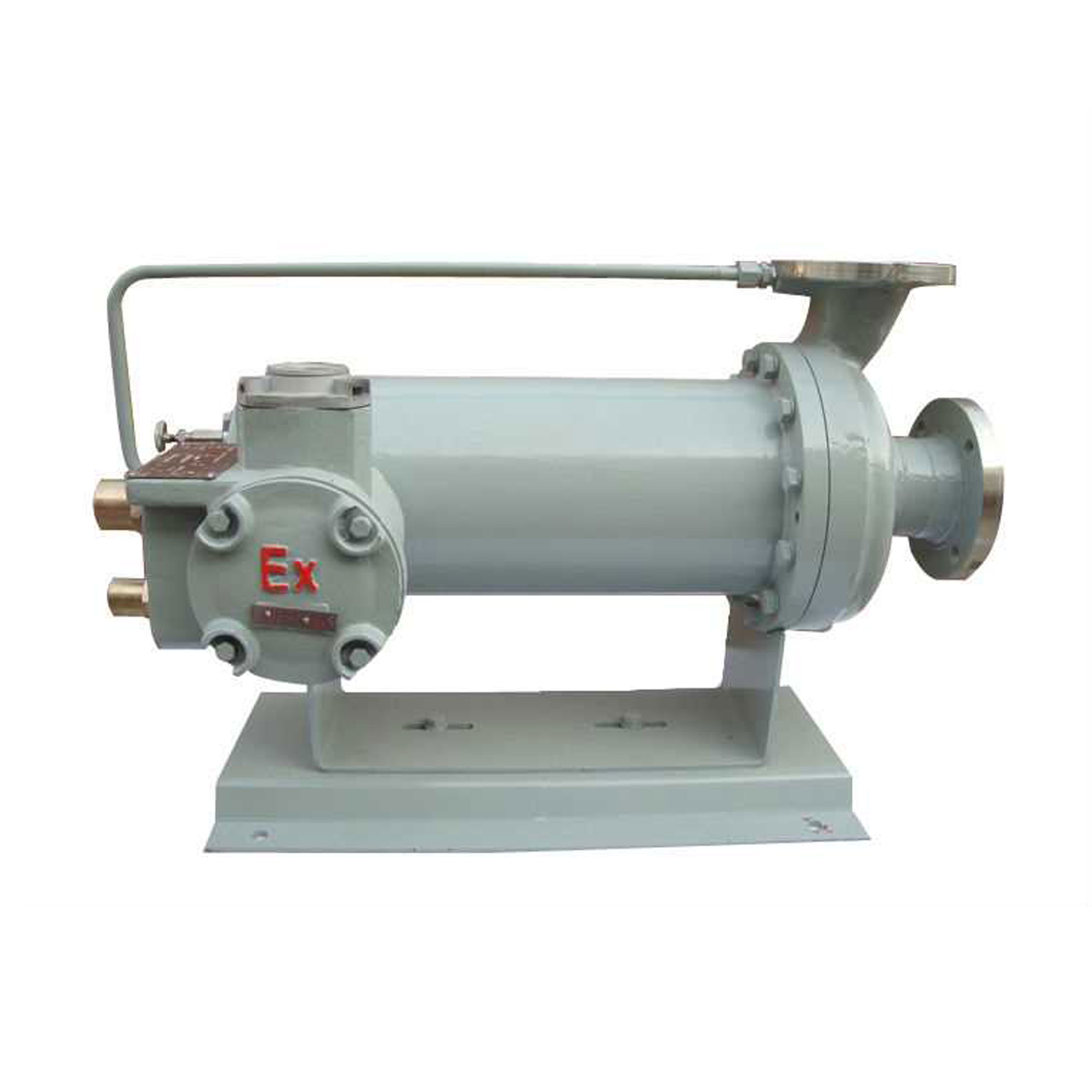

No Leakage PBG Vertical Shield Water Pump
Features:
This new kinds of international design and advanced technology of shield pump, utilizethe motor's shield technology to flow transport field, well meet the needs ofthe market.
1) Pump and motor share a common shaft,making pump running smoothly
2) Cancel the conventional shaft seal toavoid leakage
3) Use of sliding bearing instead of therolling bearing, making operation more smooth and little vibration and noise
4) Series or parallel operation available
Application:
Model PBG standard type pump is suitable forindustry and city's water supply and drainage, and fire control pressurization.Especially for conditions requiring less vibration and noise, such asunderground pump house, and air conditioner refrigeration system.
It is widely used in petroleum, chemical,metallurgical, power, papermaking, pharmaceutical and city drain, waterpressurized high-rise buildings, garden sprinkler, fire booster, long-distancetransmission, etc.
Capacity: up to 1080 m3/h
Motor Power: 0.37~160kW
Head : up to 125m
Turn Speed: 1450/2900 r/min
Specification performance datatable
Model | Flow | Head
(m) | Efficiency
(%) | Speed
(r/min) | Power
(kw) | Weight
(kg) |
(m3/h) | (L/s) |
PBG40-100(I) | 12.5 | 3.47 | 12.5 | 62 | 1450 | 1.1 | 34 |
PBG40-100(I)A | 11 | 3.05 | 10 | 60 | 1450 | 0.75 | 31 |
PBG40-125(I) | 12.5 | 3.47 | 20 | 58 | 1450 | 1.5 | 38 |
PBG40-125(I)A | 11 | 3.05 | 16 | 57 | 1450 | 1.1 | 33 |
PBG40-160(I) | 12.5 | 3.47 | 32 | 52 | 2900 | 3.0 | 56 |
PBG40-160(I)A | 11.7 | 3.25 | 28 | 51 | 2900 | 2.2 | 47 |
PBG40-160(I)B | 10.4 | 2.89 | 22 | 50 | 2900 | 1.5 | 43 |
PBG40-200(I) | 12.5 | 3.47 | 50 | 46 | 2900 | 5.5 | 85 |
PBG40-200(I)A | 11.7 | 3.25 | 44 | 45 | 2900 | 4.0 | 75 |
PBG40-200(I)B | 10.6 | 2.94 | 36 | 44 | 2900 | 3.0 | 63 |
PBG40-250(I) | 12.5 | 3.47 | 80 | 38 | 2900 | 11 | 145 |
PBG40-250(I)A | 11.6 | 3.22 | 70 | 38 | 2900 | 7.5 | 95 |
PBG40-250(I)B | 10.8 | 3.0 | 60 | 37 | 2900 | 7.5 | 94 |
PBG40-250(I)C | 10.0 | 2.78 | 52 | 36 | 2900 | 5.5 | 88 |
