Product introduction:

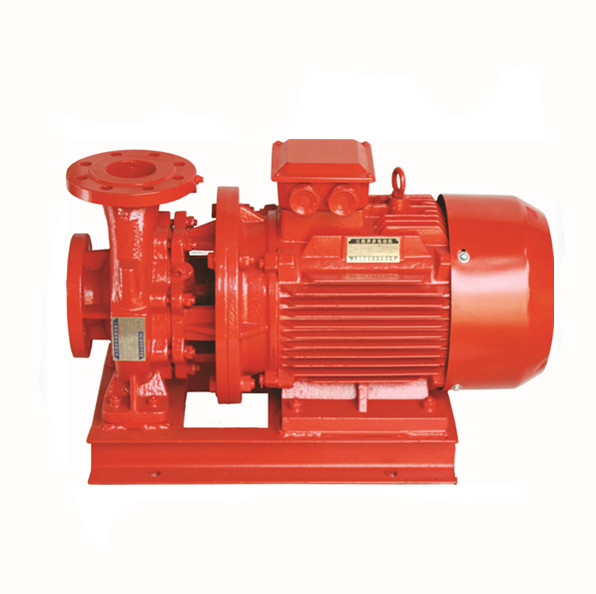

1. Zhejiang Jushi Pump Co.,Ltd manufacture 22kw end suction centrifugal pump is a ex-proof oil & chemical pump designed by Jushi Pump.
2. It is used to transport theliquid containing no solid grain, corrosive and the viscosity of which issimilar to oil.
3. The horizontal inline centrifugalpump is with the merits of compact structure, small volume, stable running,easy to mount and maintain.
4. Widely used in light &textile industry, petroleum, chemical industry, metallurgical industry, mining,medicine and synthetic fiber etc.
Product details:
Working Principle: | Centrifugal |
Main applications: | Oil |
Driver: | Electric motor |
Power Specs: | 380/415V 3phase; 50hz/60hz |
Max.permissible fluid temperature: | 120°C(248°F) |
Type of connection: | Flange |
Installation position: | horizontal |
Casing material: | Cast iron, Stainless steel/Cast iron, Stainless steel |
Shaft seal type: | Mechanical seal |
Free passage: | 0.2mm |
Maximum drive rating: | 250KW(340HP) |
Maximum caliber: | 500mm(20inch) |
Maximum discharge-side pressure: | 1.6MPa(16bar) |
Maximum head: | 160m(524.8ft) |
Flow rate range: | 1.1-2400m3/h(4.8-10560US.GPM) |
Performance data:
Model | Capacity | Head | Power | Speed | Eff. | (NPSH)r | Weight |
(m3/h) | (L/s) | (m) | (KW) | (r/min) | (%) | (m) | (kg) |
15-80 | 1.1 | 0.3 | 8.5 | 0.18 | 2800 | 32.1 | 2.3 | 20 |
1.5 | 0.42 | 8 |
2 | 0.56 | 7 |
20-110 | 1.8 | 0.5 | 16 | 0.37 | 2800 | 32.4 | 2.3 | 25 |
2.5 | 0.69 | 15 |
3.3 | 0.91 | 13.5 |
20-125 | 1.8 | 0.5 | 21 | 0.75 | 2800 | 28.1 | 2.3 | 35 |
2.5 | 0.69 | 20 |
3.3 | 0.91 | 18.6 |
20-160 | 1.8 | 0.5 | 33 | 1.5 | 2950 | 18.8 | 2.3 | 38 |
2.5 | 0.69 | 32 |
3.3 | 0.91 | 30 |
25-110 | 2.8 | 0.78 | 16 | 0.55 | 2950 | 41.2 | 2.3 | 31 |
4 | 1.11 | 15 |
5.2 | 1.44 | 13.5 |
25-125 | 2.8 | 0.78 | 20.5 | 0.75 | 2950 | 37.5 | 2.3 | 35 |
4 | 1.11 | 20 |
5.2 | 1.44 | 18 |
25-125A | 2.5 | 0.39 | 17 | 0.75 | 2950 | 36.6 | 2.3 | 35 |
3.6 | 1 | 16 |
4.6 | 1.28 | 14.5 |
25-160 | 2.8 | 0.78 | 33 | 1.5 | 2950 | 29.9 | 2.3 | 44 |
4 | 1.11 | 32 |
5.2 | 1.44 | 30 |
25-160A | 2.6 | 0.72 | 29 | 1.1 | 2950 | 29 | 2.3 | 40 |
3.7 | 1.03 | 28 |
4.9 | 1.36 | 26 |
32-100 | 3.5 | 0.97 | 14.5 | 0.55 | 2950 | 45.9 | 2.3 | 35 |
4.5 | 1.24 | 12.5 |
5.3 | 1.47 | 11 |
32-125 | 3.5 | 0.97 | 22 | 1.1 | 2950 | 42.2 | 2.3 | 38 |
5 | 1.39 | 20 |
6.5 | 1.8 | 18 |
32-125A | 3.1 | 0.86 | 20 | 0.75 | 2950 | 41.2 | 2.3 | 37 |
4.5 | 1.25 | 16 |
5.8 | 1.61 | 10 |
32-160 | 3.5 | 0.97 | 34 | 1.5 | 2950 | 32.8 | 2.3 | 49 |
4.5 | 1.25 | 32 |
6 | 1.67 | 26 |
32-160A | 3.5 | 0.97 | 26.5 | 1.1 | 2950 | 31.8 | 2.3 | 43 |
4.5 | 1.25 | 25 |
6 | 1.67 | 19 |
32-200 | 3.5 | 0.97 | 53 | 3 | 2950 | 23.8 | 2.3 | 68 |
4.5 | 1.25 | 50 |
5.5 | 1.53 | 45 |
32-200A | 3 | 1.08 | 43 | 2.2 | 2950 | 22.9 | 2.3 | 58 |
4 | 1.11 | 40 |
5 | 1.17 | 37 |
… … |
400-300 | 820 | 228 | 23 | 90 | 1480 | 78.2 | 6 | 1450 |
1080 | 300 | 20 |
1300 | 361 | 16 |
400-315 | 820 | 228 | 36.5 | 132 | 1480 | 81.1 | 6 | 1740 |
1080 | 300 | 32 |
1300 | 361 | 27 |
400-450 | 1500 | 416.7 | 23 | 160 | 980 | 80.6 | 6.5 | 2420 |
2000 | 555.6 | 20 |
2400 | 666.7 | 15 |
400-450A | 1400 | 388.9 | 20 | 132 | 980 | 79.3 | 6.5 | 1940 |
1860 | 516.7 | 17 |
2250 | 625 | 14 |
400-500 | 1500 | 416.7 | 34 | 250 | 980 | 82.8 | 6.5 | 2980 |
2000 | 555.6 | 32 |
2400 | 666.7 | 27 |
400-500A | 1400 | 388.9 | 30 | 200 | 980 | 81.9 | 6.5 | 2840 |
1860 | 516.7 | 28 |
2240 | 625 | 24 |
400-500B | 1300 | 361.1 | 26 | 160 | 980 | 80.9 | 6.5 | 2710 |
1750 | 486.4 | 24 |
2100 | 583.3 | 21 |
500-300 | 1000 | 277.8 | 23 | 110 | 1480 | 81.7 | 6 | 1800 |
1200 | 333 | 20 |
1450 | 403 | 16 |
500-315 | 1000 | 277.8 | 34.5 | 160 | 1480 | 80.9 | 6 | 2070 |
1200 | 333 | 32 |
1450 | 403 | 27 |
Parameter table above is only a part ofwhole. For more, please contact us directly.
