Johames JCQ stainless steel chemical magnetic pump

Issuing time:2019-01-14 20:25Author:Laurent Wu

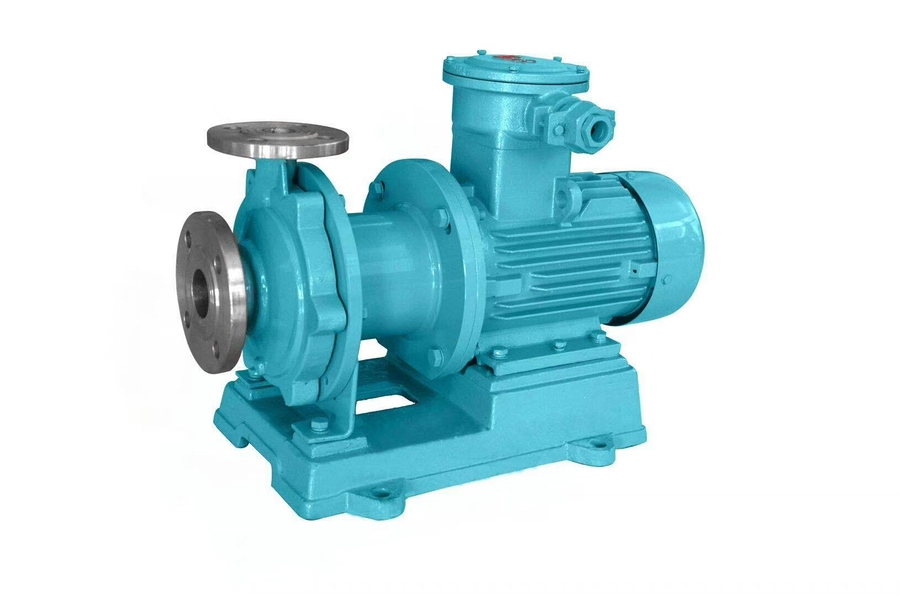

Johames JCQ stainless steel chemical magnetic pump.jpg

Introduction:

1. CQ non-leakage chemical magnetic pump explosion proof transfer acid pump is made of high quality stainless steel material.

2. The transfer acid pump is with many merits of compact structure, small volume, nonleakage, good corrosion resistance ability, low noise, reliable running and easy to maintain.

3. The chemical magnetic pump could be used to transfer acid, caustic soda, lye, liquor, oil, rare and precious, venom, volatile liquid or work as the unit marching circulating water equipment and filter separator.

4. Widely used in chemical industry, pharmacy, petroleum, electro facing industry, food industry, film and photo processing, scientific research institution and national defense industry.

Product details:

Working Principle:

Centrifugal, Magnetic

Main applications:

Chemical, water, oil

Driver:

Electric motor

Power Specs:

380/415 V 3phase; 220/240 V 1phase; 50hz/60hz

Max.permissible fluid temperature:

80°C(203°F)

Type of connection:

Flange

Installation position:

Horizontal

Casing/Inner parts material:

Stainless steel/Stainless steel

Shaft seal type:

Static sealing

Free passage:

0 mm

Maximum drive rating:

30KW(40HP)

Maximum caliber:

150mm(6inch)

Maximum discharge-side pressure:

0.5MPa(5bar)

Maximum head:

50m(164ft)

Flow rate range:

20-3350L/min(45.3-884.4 US.GPM)

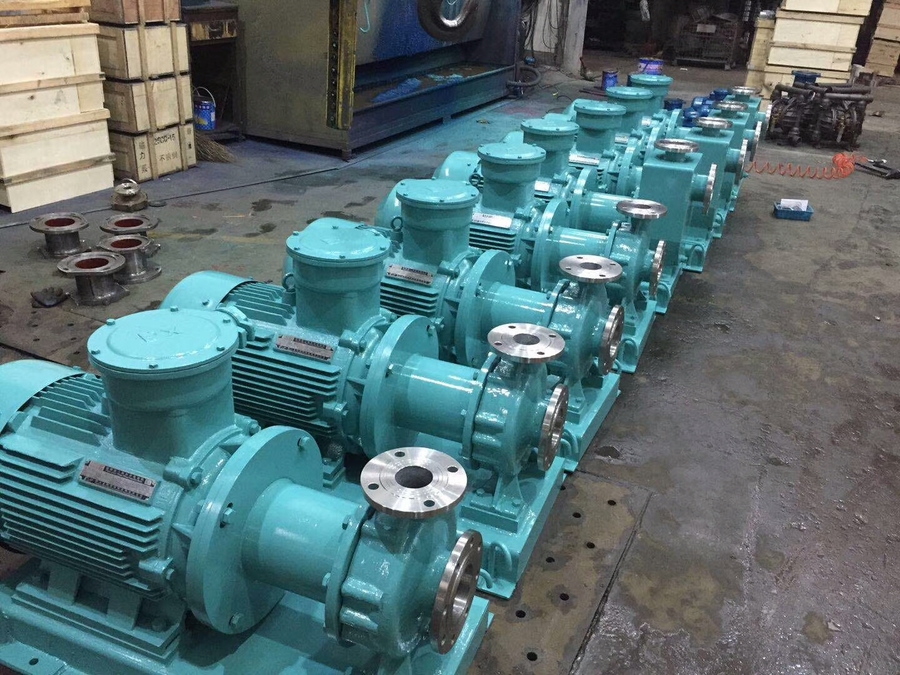

johames CQ stainless steel magnetic pump for chemicals.jpg
